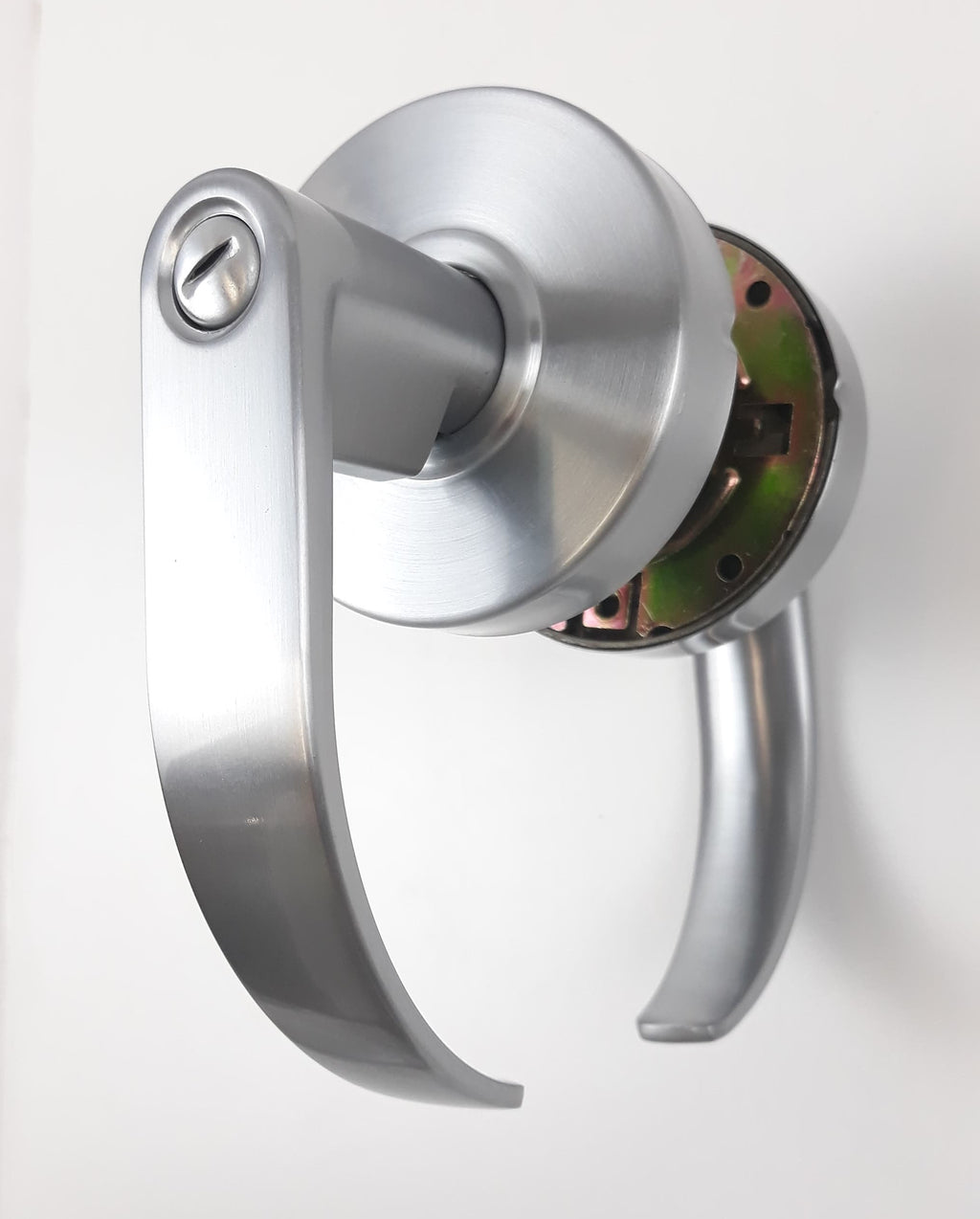

Dorma Grade 2 Bored Locksets Munich Private US26D Satin Chrome



• Exposed Trim. Wrought brass. Pressure Cast Zinc Lever.
• Door Thickness. 1-3/8” to 2” (35mm to 51mm) standard.
• Backset. Available in 2-3/8” or 2-3/4” (60mm)
• Strike. 9106. T Strikes 1-1/8” x 2-3/4” x 5/64” (28.2mm x 69.5mm x 2.0mm) Standard.
• Latch. 2-3/4” (70mm) Standard. Faceplate: 1-1/8”x 2-1/4”(28.4mm x 57mm) square corner. Latch bolt: Stainless steel powder metallurgy latch bolt with ½” (12.7mm) throw.
• Cylinder. 6 pin brass cylinder. Schlage “C” Keyway standard / Yak Keyway
