DORMA Gr 3 Tubular Bored Lever Lockset Dortmund US26D Entrance s.chrm


Price:

Description

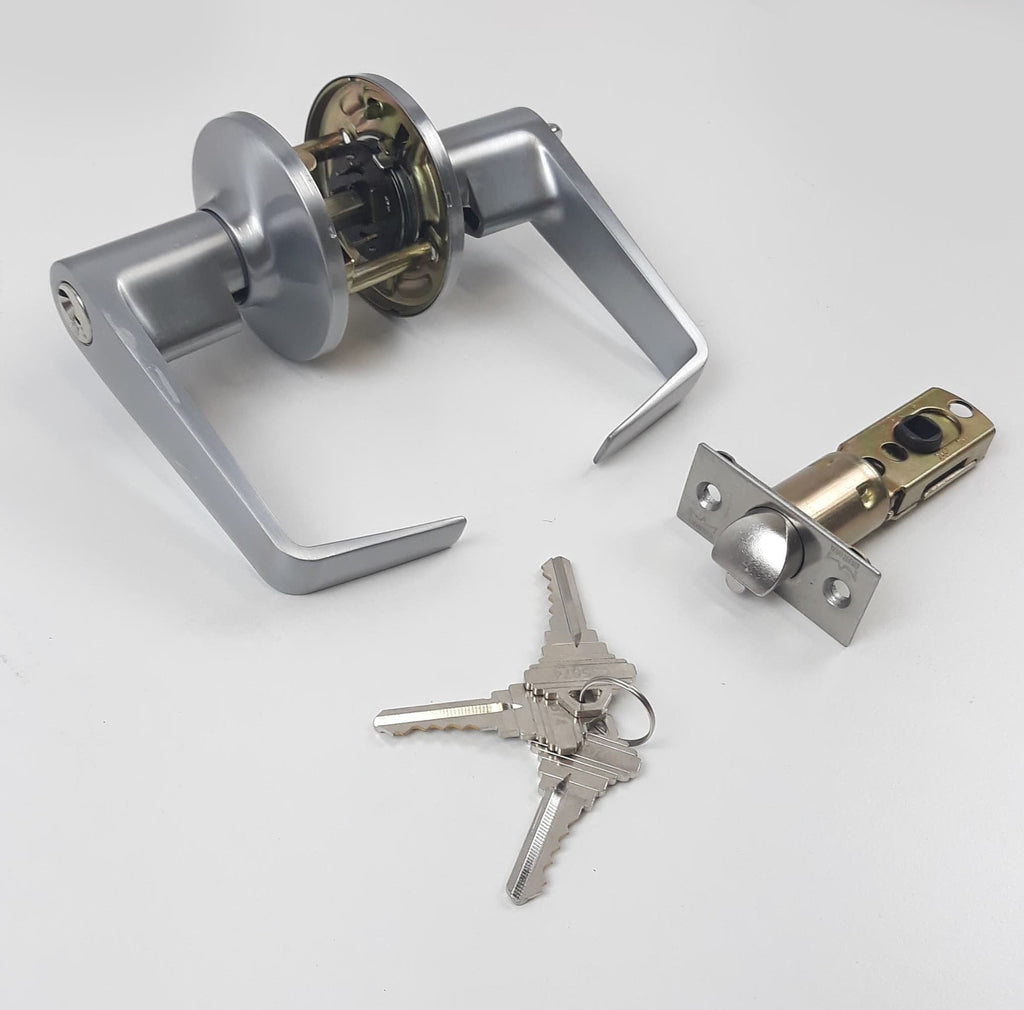

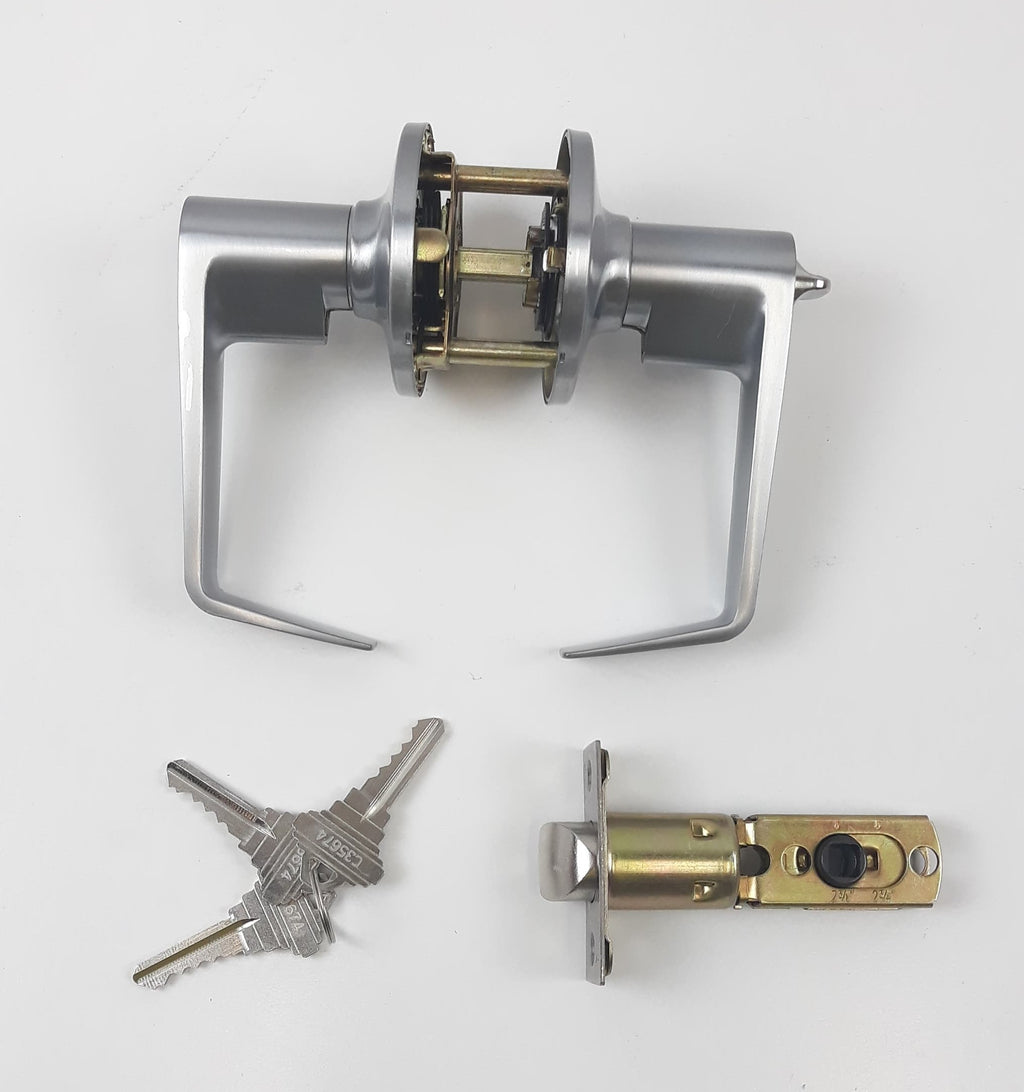

DL3 Grade 3 Residential Tubular Lockset

Specifications
• Exposed Trim. Wrought brass. Pressure Cast Zinc Lever.
• Door Thickness. 1-3/8” to 1-3/4” (35mm to 45mm) standard.
• Backset. Adjustable 2-3/8” to 2-3/4” (60mm to 70mm) standard.
• Strike. 9101. T Strikes 1-1/8” x 2-3/4” x 5/64” (28.2mm x 69.5mm x 2.0mm) Standard.
• Latch. Faceplate: 1”x 2-1/4”(25mm x 57mm). Zinc alloy latch bolt with ½”(12.7mm) throw.
• Cylinder. 5 pin brass cylinder. Yale Keyway standard.
• Door Handling. Non-handed.
